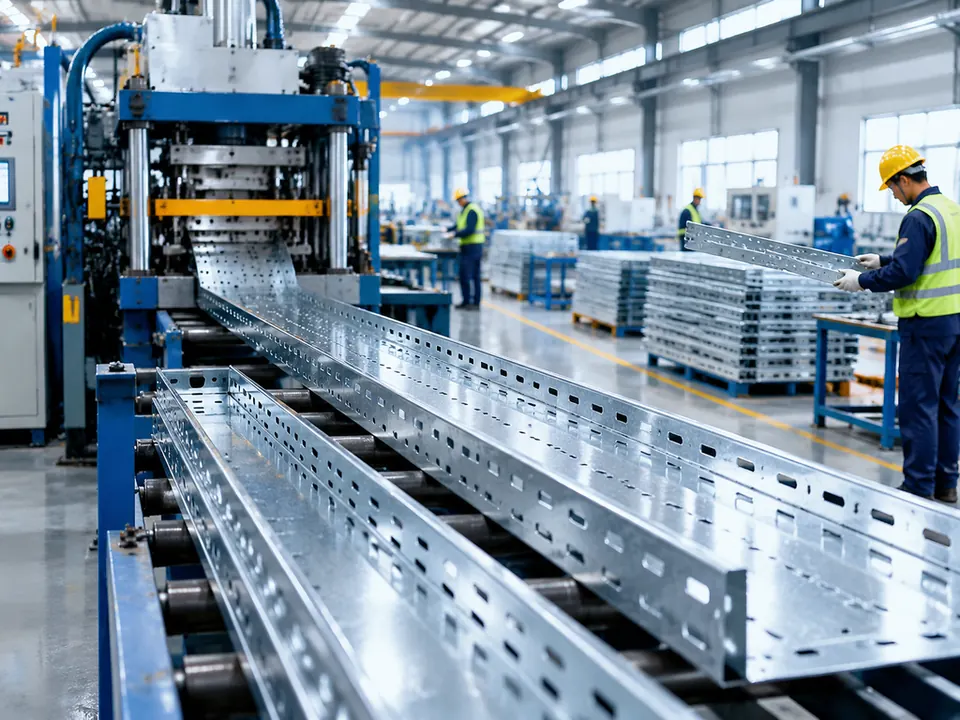

How to Choose the Right Cable Tray for Your Project

Choosing the right cable tray early can reduce installation time, improve ventilation and make future maintenance easier.

Start with the cable route

List the cable types, approximate quantity, route length, indoor or outdoor location and the working environment. A clean project brief helps the manufacturer recommend the right width, height, material and accessories.

Compare the main tray styles

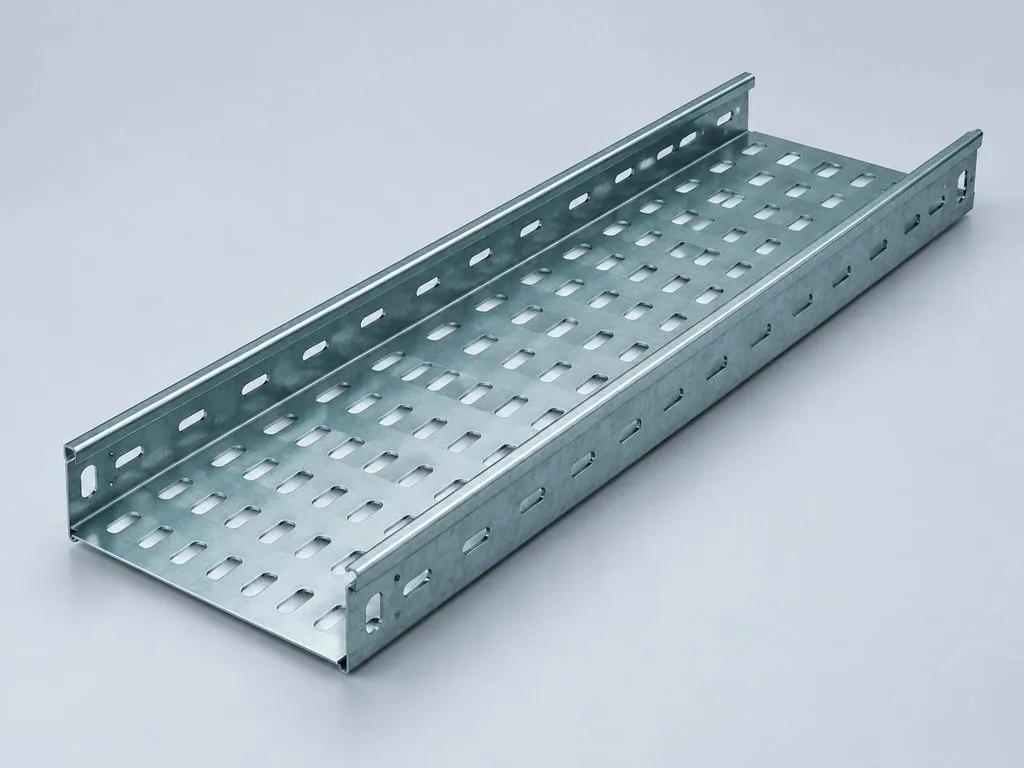

• Perforated cable tray: a balanced option for ventilation, support and everyday commercial or industrial routes.

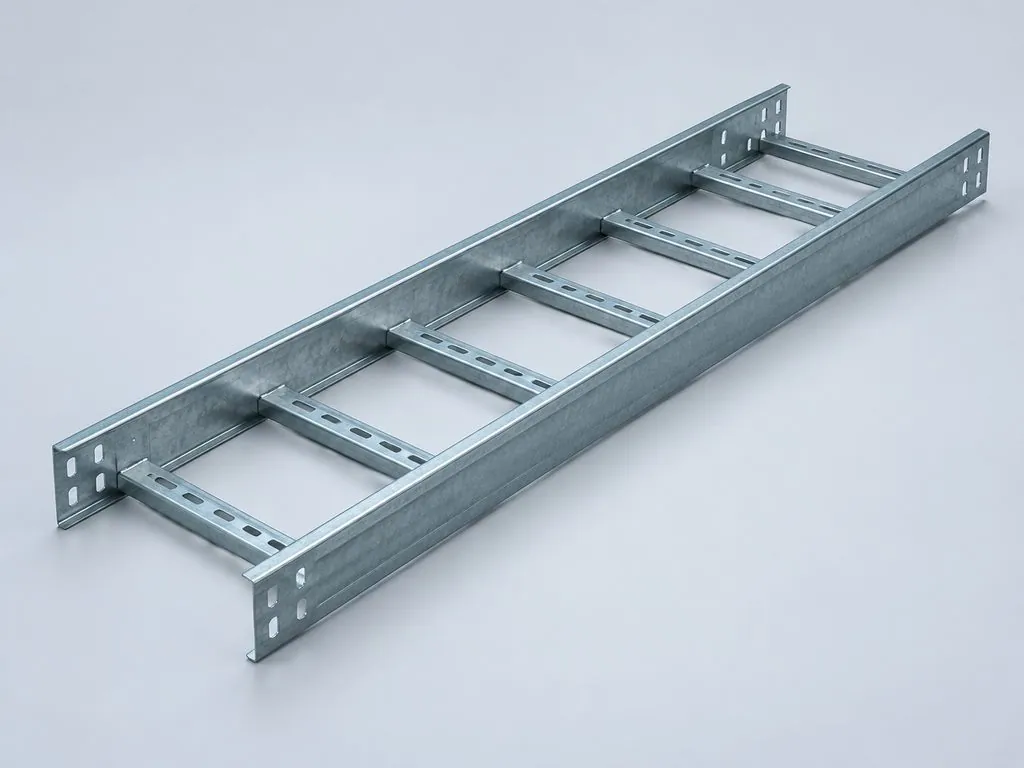

• Ladder cable tray: useful for heavier power cables and longer spans where access and airflow matter.

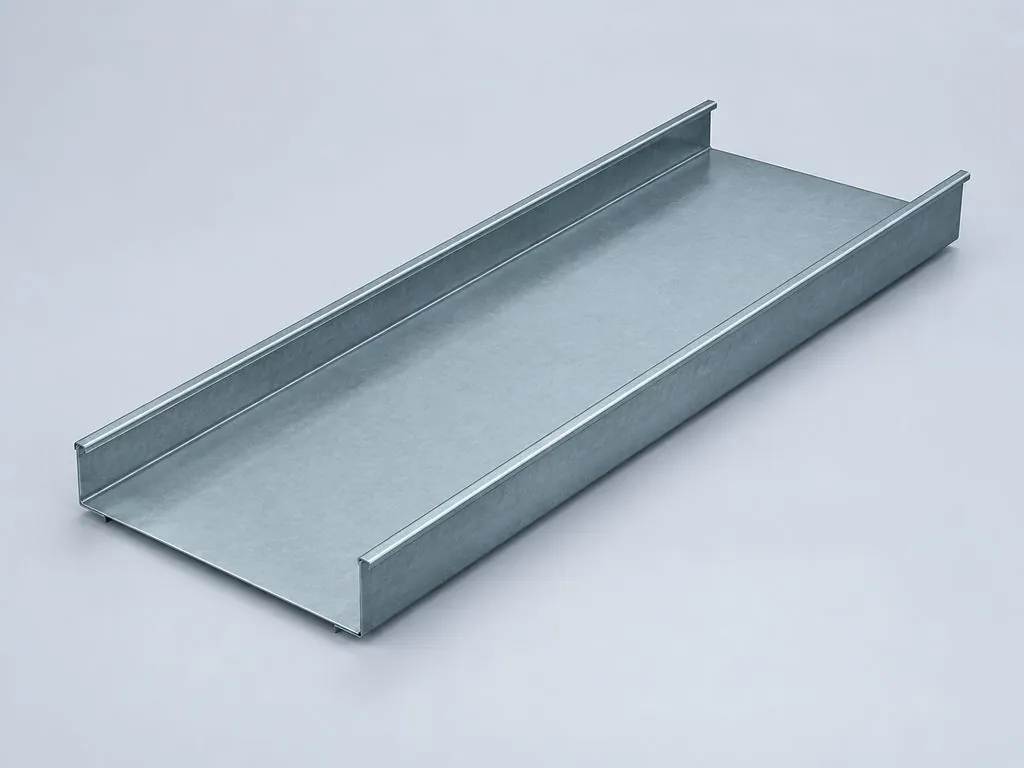

• Solid bottom tray: suitable where cable protection from dust, debris or small falling objects is important.

Match the finish to the environment

Galvanized steel is widely used for general projects. Hot-dip galvanized, stainless steel or aluminum may be more appropriate where moisture, chemicals, salt or weight reduction are important. Always confirm the finish with the project specification.

Confirm load, dimensions and accessories

Check the manufacturer's load data, support arrangement, bend radius and fitting schedule. Allow space for installation and future expansion instead of sizing the tray only for today's cables.

How to Install Cable Tray Systems: A Practical Guide

A well-planned cable tray installation protects cables, keeps routes easy to inspect and prevents avoidable rework at the job site.

1. Plan the route before installation

Review drawings, equipment locations, access points and other services before fixing supports. Keep the route as direct as possible and leave room around bends, tees and drops for pulling and future maintenance.

2. Set supports and spans consistently

Install supports according to the approved drawing and the tray manufacturer's load table. Check alignment, level and fixing strength before placing the tray sections. Poor support spacing can lead to deflection, damaged finishes or difficult cable pulling.

3. Use the right fittings

Use compatible bends, reducers, tees, crosses, covers and splice plates. Avoid sharp edges and respect the minimum bend radius of the cables. Keep cable routes neat with suitable ties or cleats, without crushing or over-tightening them.

4. Check bonding and separation

Metallic tray systems may need bonding or grounding continuity depending on the design and local electrical code. Keep power, control and communication cables separated where the project requirements call for it, and follow the cable and tray manufacturer's instructions.

5. Inspect before handover

Confirm fasteners, joints, edges, covers, support points and cable clearance. Record any field changes and complete the required inspection before the system is energized.

Cable Tray Maintenance Checklist for Industrial Buildings

Regular inspection keeps cable tray systems safe, organized and ready for changes as a facility grows.

Inspect the tray and finish

Look for corrosion, impact damage, sharp edges, loose covers, bent sections and blocked drainage points. Outdoor and coastal locations usually need closer attention because moisture and salt can accelerate corrosion.

Check supports, joints and bonding

Review support brackets, splice plates, bolts and expansion connections. Look for movement, excessive deflection or missing hardware. Where bonding or grounding is part of the design, verify continuity according to the project procedure.

Review cable loading and condition

Check whether new cables have reduced clearance or added weight beyond the original design. Inspect insulation, cable ties, cleats and entry points for abrasion, heat or mechanical stress. Keep unused space available for safe maintenance and planned expansion.

Keep routes clean and documented

Remove dust, packaging and debris without damaging cables. Update route drawings after modifications and label important circuits. A simple inspection record helps teams compare changes over time and plan replacement work.

Use qualified personnel

Maintenance near energized equipment should follow the site's lockout, isolation and electrical safety procedures. When in doubt, stop work and consult the responsible electrical professional.
